Commercial Products
Over the last 35 years, Southeastern Overhead Door has installed commercial products throughout Louisiana. Over this period, we have developed the expertise to handle any job no matter how complex.
Click Here to Download Garage and Overhead Door Framing
Commercial Sectional Doors
Our commercial sectional doors are manufactured by Wayne-Dalton. Wayne-Dalton offers a comprehensive line of commercial sectional doors, including flush and ribbed 16, 20 and 24 gauge insulated and non-insulated steel doors and three models of foamed-in-place polyurethane insulated steel doors with various “R” values, all with their patented “built-in-struts” for added strength and rigidity. They also sell glass full-view aluminum doors and even have commercial doors with raised panels for a more residential look.
Here are some of our most popular models:
Wayne-Dalton C-2400
Key Product Features:
- Optional polystyrene insulation, R-Value=7.64
- Nominal 24 Gauge Ribbed Steel Sections
- Max Width 20’2″
- Tongue-and-Groove Joint Profile
- Ribbed exterior with embossed or smooth finishes in white or brown
- Optional polystyrene insulation, R-Value=7.64
- Nominal 24 Gauge Ribbed Steel Sections
- Max Width 20’2″
- Tongue-and-Groove Joint Profile
- Ribbed exterior with embossed or smooth finishes in white or brown
The Wayne-Dalton C-2400 steel sectional door is available in a variety of sizes and is an excellent value. Featuring nominal 24-gauge ribbed steel sections, the C-2400 offers a number of lite and insulation options. Available with an embossed finish in white or brown or a white smooth finish, the exterior of the C-2400 features a ribbed surface for increased strength and added visual appeal. Unique boxed-stile design with full 2″ thickness and 3″ width, plus tongue-and-groove construction, add vertical stability and strength. The stiles are continuously bonded to the skin surface with high strength adhesive, resulting in the strongest possible unit.
If you have any questions, need any additional information or would like a quote, please call us at (225) 753-1595. You can also schedule a free on-site estimate anywhere in the South Louisiana. We also invite you to click here to visit Wayne-Dalton website to learn more about the numerous options available in commercial sectional doors.

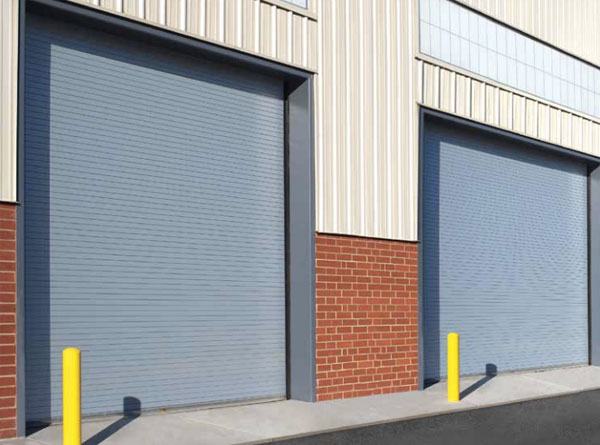

Rolling Steel Doors
We offer a comprehensive line of rolling steel doors by Wayne-Dalton and Cookson. Rolling Steel Doors are metal slatted doors that roll up to store in a coil above the opening. They are used to provide security against entry or weather protection at exterior and interior openings in industrial, commercial, institutional and other buildings. They are also called overhead coiling doors or service doors. Rolling steel doors come in insulated and non-insulated models and a variety of wind-load and other options. Southeastern Overhead Door has over 35 years of knowledge and experience with rolling steel doors and you can feel confident that you are getting the best possible solution for your building application needs. To learn more about rolling steel doors or to receive a free quote, please call us at (225) 753-1595. We also invite you to visit the Wayne-Dalton website by clicking here or the Cookson website by clicking here.
Here are some of our most popular models of rolling steel service doors:
Wayne-Dalton 900 Series Rolling Steel Door
The 900 series rolling steel service door is ideal for jobs that require a durable and strong door at an economical price. The 900 series gives you choices of 24, 22, or 20 gauge galvanized steel, stainless steel or aluminum. The door comes in 4 standard factory-finishes (white, gray, brown, beige) or you can choose a full range of RAL powder-coat finishes. The 900 series also comes with a standard wind load rating of 20 PSF with an option up to 31 PSF. It is also available in a 2 inch curved or flat faced slat and will fit openings up to 16 feet wide and 16 feet high.
Wayne-Dalton 800 Series Rolling Steel Door
Wayne-Dalton’s 800 series rolling service door is designed to meet the rigorous requirements of virtually any commercial or industrial application. The 800 series offers flexibility with the choice 16, 18, 20 or 22 gauge galvanized or primed steel, stainless steel or aluminum. The door comes in 4 standard factory-finishes (white, gray, brown, beige) or you can choose a full range of RAL powder-coat finishes. The 800 series also comes with a standard wind load rating of 20 PSF with an option up to 55 PSF. It is also available in a 3 inch curved or flat faced slat and will fit openings up to 42 feet wide and 40 feet high.
Cookson Rolling Service Doors.
The Cookson Company manufactures a custom rolling service door that is hand-made with superior design. Every Cookson door is built with heavy duty, quality materials. Each service door includes: 50,000 life cycle design,structural angle guides and bottom bar, cast iron gears and stops, fabricated steel brackets, 20 psf wind-loading, and an exclusive FinalCote finish (Standard colors are: White, Gray, Teal and Brown). ColorCote powder coating is also available in more than 180 Standard PAL colors. Special Doors are also available for sizes up to 70′ wide and 100′ high as well as high cycle and ultra high cycle applications. For over 70 years, Cookson has manufactured premium rolling doors that have endured the test of time.
Rolling Fire Doors
Rolling fire doors are an important part of your line of defense against the spread of fire. We offer the Wayne-Dalton and Cookson lines of fire doors. These doors offer UL labeled fire ratings of 45 minutes, 90 minutes, 3 hours and 4 hours. To learn more about fire doors, call us at (225) 753-1595.
Rolling Counter Shutters
Rolling counter shutters, also known as rolling counter doors, secure openings above counters and similar finished openings in interior or exterior walls using smaller (and more aesthetically pleasing) guides, slats, brackets and hoods than traditional rolling doors. Rolling counter shutters can fully close to the floor when compact door components are desired. Rolling Counter shutters are commonly used in pharmacies, concession stands, cafeterias and box offices. We offer rolling counter shutters by Wayne-Dalton and Cookson. To learn more about rolling counter shutters, call us at (225) 753-1595.
Rolling Grilles
Rolling Grilles are used to safeguard exterior and interior openings in just about every type of store, including almost every major American mall. They are also found in pharmacies, airports, banks, stadiums and other public access areas. Rolling grilles offer the unique combination of strength and open visibility. We offer rolling grilles by Wayne-Dalton and Cookson. To learn more about rolling grilles, call us at (225) 753-1595.
Rolling Sheet Doors
Rolling sheet doors are the perfect solution when your project requires a solidly constructed and durable rolling sheet door that is easy on your budget. We carry the DBCI line of sheet doors. DBCI is one of the leading manufacturers of commercial grade sheet roll-up doors and is committed to quality, product development and service. We have been installing, maintaining and repairing DBCI sheet doors for more than thirty years. The following is an overview of the DBCI line of commercial sheet roll-up doors.
650 Series Self-Storage Door
The 650 is the best choice for an easy to operate and low maintenance door, which features shielded steel radial bearings on both support brackets. The DBCI tension bracket allows quick, safe, inexpensive and unlimited adjustments to the door.
DBCI doors use the WeatherX coating system, which is recognized for its remarkable color and gloss retention, as well as its superior chalk resistance. It allows DBCI doors to endure the physical abuses from manufacturing, transit and installation while minimizing cracking.
Curtain
- 26-gauge galvanized, Grade E hard steel
- 5/8″ ribbed corrugation
- Many latch options available
- All latches accept double locks and 7/16″ shackles
- Rain lip note: For proper exterior door installation, a 1 ½” deep rain lip must be formed in the concrete slab extending a minimum of 3 ½” from the interior face of the jamb
- NOTE: The 650 Series are wind rated up to 8’8″ wide and approximately 90 MPH.
Bottom Bar
- 6063 – T6 aluminum extrusion
- 1 ½” x 1 ½” galvanized angles
- Replaceable bulb astragal
Axle-Drum Assembly
- 1 5/16″ O.D. steel axle, 14-gauge
- Utilizes 9 ½”, 18-gauge drums
- Oil tempered e-coated torsion springs, available in two springs upon request from 7′ to 10′ wide
- Fully accessible springs for inspection and maintenance
Guide System
- 18-gauge galvanized steel
- Pre-punched holes for anchors, slide latch, bracket attachment and head stop attachment
- Polyethylene guide strips provide easy, quiet operation
Hardware
- 12-gauge head stops have slotted mounting holes for proper attachment
- 14-gauge galvanized steel handles
- 12-gauge tension bracket made for additional strength
- Shielded radial bearings for smooth operation
- Worm gear tensioning design allows for smooth adjustment
- 12-gauge bearing bracket on right side
DBCI 2000 Series light-Duty Commercial-Grade Door
The 2000 Series is the right choice for light-duty applications requiring frequent usage such as warehouses, freight terminals, car washes, machine shops, auto body shops and much more. The 16-gauge, 12″ drums allow for easy retraction. These doors are low-maintenance, which is what every owner wants in a quality door.
DBCI’s commercial-grade steel curtain roll-up doors are designed to meet and/or exceed operational requirements for commercial doors with little or no maintenance. We keep several DBCI 2000 doors in standard sizes in stock. The doors we keep in stock are white but they are available in several different colors at no extra charge.
Curtain
- 26-gauge galvanized, Grade E hard steel
- Deep-ribbed corrugation
- Maximum opening size of 12′ x 18′
- Flexible wear strips
- NOTE: The 2000 is not rated for wind loads. Please see the 2500 or 5000
Bottom Bar
- 6063-T6 aluminum extrusion
- 2″ x 1 ½” galvanized angles
- Bulb astragal
- Stainless steel nuts and bolts
Axle-Drum Assembly
- 1 5/16″ O.D. steel axle, 14-gauge
- 11-gauge axle on doors over 10′ wide
- Utilizes 12″, 16-gauge drums
- Shielded steel ball bearings in drums
- Full top sheet
A.C.E. Guide System
- 16-gauge galvanized steel
- Adjustable bolt on head stop
- Polyethylene wear strip
- Pre-punched for lock and attachment fasteners
Hardware
- Saddle clamps with set fasteners
- 10-gauge slide locks; 2 per door
- 16-gauge step plate; 2 per door
- ¼” steel angle T-bracket
Opening Height Headroom
- Doors up to 10′ have 20″ of headroom
- Doors 10′ to 14′ have 22″ of headroom
- Doors over 14′ have 24″ of headroom
DBCI 2500 Series Heavy-Duty Commercial-Grade Door
The 2500 Series is DBCI’s heavy-duty steel curtain roll-up door with tremendous versatility and unmatched quality. The 2500 Series has deep engagement guides creating greater durability and stronger, longer lasting performance.
DBCI’s commercial-grade steel curtain roll-up doors are designed to meet and/or exceed operational requirements for commercial doors with little or no maintenance.
Curtain
- 26-gauge galvanized, Grade E hard steel
- Deep ribbed corrugation
- Maximum opening size of 18′ x 18′
- Flexible wear strips
- NOTE: The 2500 Series are wind rated up to 12’0″ wide and approximately 90 MPH. The MPH rating increases as the door width decreases.
Bottom Bar
- 6063-T6 aluminum extrusion
- 2″ x 1 ½” galvanized angles
- Bulb astragal
- Stainless steel nuts and bolts
Axle-Drum Assembly
- 1 5/16″ O.D. steel axle, 14-gauge
- 11-gauge axle on doors over 10′ wide
- Utilizes 12″, 16-gauge drums
- Shielded steel ball bearings in drums
- Full top sheet
- Oil tempered torsion springs
A.C.E. Guide System
- 14-gauge galvanized steel
- Adjustable bolt on head stop
- Polyethylene wear strip
- Pre-punched for lock and attachment fasteners
Hardware
- Saddle clamps with set fasteners
- 10-gauge slide locks; 2 per door
- 16-gauge step plate; 2 per door
- ¼” steel welded angle T-bracket
Opening Height Headroom
- Doors up to 10′ have 20″ of headroom
- Doors 10′ to 14′ have 22″ of headroom
- Doors over 14′ have 24″ of headroom
DBCI 5000 Series Wind-Certified Commercial-Grade Door
Fueled by constant changes in local and national building codes, as well as increasing insurance costs, doors with validated wind certification can dramatically reduce maintenance and replacement costs and minimize downtime. DBCI’s wind-certified doors are designed to meet stringent building codes in coastal regions and Florida.
Curtain
- 26-gauge galvanized, Grade E hard steel
- Deep-ribbed corrugation with three-rivet windlock attachment
- Maximum opening size of 20′ x 16′
- Flexible wear strips
- NOTE: The 5000 Series are wind rated up to 20’0″ wide and approximately 120 MPH.
Approximate* MPH Certification
- 10′ wide = 150 mph
- 12′ wide = 150 mph
- 14′ wide = 146 mph
- 16′ wide = 140 mph
Bottom Bar
- 6063 – T6 aluminum extrusion
- 2″ x 1 ½” galvanized angles
- Bulb astragal
- Stainless steel nuts and bolts
Axle-Drum Assembly
- 1 5/16″ O.D. steel axle, 14-gauge
- 11-gauge axle on doors over 10′ wide
- Utilizes 12″, 16-gauge drums
- Shielded steel ball bearings in drums
- Full top sheet
- Oil tempered torsion springs
A.C.E. Guide System
- 12-gauge galvanized steel
- 12-gauge wind lock bar
- Adjustable bolt on head stop
- Polyethylene wear strip
- Pre-punched for lock and attachment fasteners
Hardware
- Saddle clamps with set fasteners
- 10-gauge slide locks; 2 per door
- 16-gauge step plate; 2 per door
- ¼” steel angle T-bracket
Opening Height Headroom
- Doors up to 10′ have 20″ of headroom
- Doors 10′ to 14′ have 22″ of headroom
- Doors over 14′ have 24″ of headroom
Blue Giant Bug Screen Doors
Bug screen doors create a comfortable work environment while cutting down on energy bills. Typical applications include loading bays, distribution centers, and warehouses. We offer bug screen doors by Blue Giant. To learn more about bug screen doors, call us at (225) 753-1595.
High Speed Doors
High speed doors are the ideal solution for lowering energy costs in high-traffic areas. They protect your environment from drafts, humidity, dust and dirt. Due to the fast operation they also improve comfort for your employees and save energy. We have over ten (10) years of experience in installing and servicing high speed doors. To learn more about high speed doors, call us at (225) 753-1595.
RECENT SOUTHEASTERN OVERHEAD DOOR OPERABLE WALL/PARTITION INSTALLATIONS
- Mimosa Park Elementary School (Luling)
- The Dunham School (Baton Rouge)
- URS Corporation (Baton Rouge)
- Methanex (Geismar)
- Woman’s Hospital (Baton Rouge)
- Central Intermediate School (Central)
- St. Thomas Aquinas School (Hammond)
- Associated Builders and Contractors (St. Rose)
- Ascension Lanes (Gonzales)
- Humana (Baton Rouge)
- Amerigroup (Baton Rouge)
- Metairie Manor (Metairie)
- Alexandria Milne Home for Women (Alexandria)
- Vivid Ink (Baton Rouge)
- Walker Baptist Church (Walker)
- Chevron (Covington)
- Forum Industries (Broussard)
- St. George Fire Department Administrative Building (Baton Rouge)
- Ascension Parish Government
- Georgia Pacific (Port Hudson)
- Neill Training Center (Hammond)
- Torah Academy (Metairie)
- St. Jude School (Baton Rouge)
- Louisiana Healthcare Connection (Lafayette)
- Loreauville Elementary (Loreauville)
- Aveda Institute (Lafayette)
- Guarantee Service (Baton Rouge)
- The Louisiana Chemical Association (Baton Rouge)
DOCK EQUIPMENT
We are an authorized dealer for Blue Giant Equipment Company. The loading dock and material handling industry has evolved significantly during the last fifty years and Blue Giant has been a part of that movement since 1963. By effectively identifying market trends and recognizing product development opportunities, Blue Giant has made strategic decisions that keep the company at the forefront of innovation. Today Blue Giant is a global leader in the development, manufacture and distribution of loading dock systems and material handling equipment, including dock levelers, ground-level lifts, vehicle restraints, touch controls, dock and door guards, door seals and shelters.
To learn more about dock equipment, call us at (225) 753-1595.
LIFTMASTER COMMERCIAL OPERATORS
Commercial Door Operators
LiftMaster leads the industry in commercial operators and we have been using them for over thirty-five years. LiftMaster’s product line offers a full selection of trolley and jackshaft operators with dozens of options and modifications. Whether it be safety equipment, special controls, harsh environments or large doors, LiftMaster has the right opener and modifications to meet all of your special needs.
Our most popular models of commercial operators are:
LiftMaster Model MT – Medium Duty Trolley Operator
Suspended from the ceiling, this Medium Duty Trolley Operator is designed for use on standard lift sectional doors up to 14 feet high and up to 12 cycles per hour.
Performance
- 115 volt 1 Ɵ
- Apply Open/Close/Stop functions with the standard three-push-button control station. Controls with one, two and three buttons are available
- Receive notifications when routine maintenance is required on your Commercial Door Operator
- Improve durability with the NEMA 1 type electrical box construction with a powder-coat finish
- Heavy-duty, oil-filled bushings
- Enable limit setting for ease of installation and adjustment to ensure accuracy even after a power failure
- Automatically close the door with Timer-To-Close (programmable in 1-second or 15-second increments)
- Ensure peace of mind with a LiftMaster® two-year warranty
LiftMaster Model MH – Medium Duty Hoist Operator
The Model MH Medium Duty Hoist Operator is ideal for use on small rolling doors, grilles and industrial sectional doors with high or vertical lift.
Performance
- 115 volt 1 Ɵ
- With Open/Close/Stop functions, the three push-button control station is standard for all operators. Controls with one, two and three buttons are available.
- Maintenance Alert System provides notifications when routine maintenance is required on your Commercial Door Operator.
- With a powder-coated finish, the NEMA Type 1 electrical box construction is durable enough for most applications.
- Heavy-duty, oil-filled bushings.
- Mounts on the left or right side of the door. No rails to hang—the Door Operator simply mounts on the wall and attaches to the door shaft through chain and sprocket.
- Door Operator electromechanical limit system enables ease of installation and adjustment to ensure accuracy, even after a power failure.
- Programmable in one-second or 15-second increments, Time-to-Close automatically closes the door.
Ensure peace of mind with a LiftMaster two-year warranty.
LiftMaster Model H Elite Series – Heavy Duty Hoist Operator
- Hoist (H) style commercial door operators are optimal for industrial applications. H-style operators include a floor level chain hoist to ease manual operation.
- Single-Phase: 115V and 230V, 3-Phase: 208V, 230V and 460V, 575V is a discrete model without field-selectable voltage.
- Continuous-Duty High-Starting Torque Motor performs in demanding industrial overhead door applications.
- Adjustable Friction Clutch helps to protect door and operator from damage should the door meet an obstruction.
- Mid-Stop enables partial opening of door to a preprogrammed position for energy savings, time savings and convenience.
- Delay-On-Reverse Circuit prevents abrupt reversal of door, reducing wear on the door and operator system.
- 3-Button Control Station with Maintenance Alert System (MAS) provides open/close/stop functions and notification when routine maintenance is required.
- Continuous-duty high-starting torque motor with instant reverse and overload protection. Available in 1/3, 1/2, 3/4 and 1 HP; single- or three-phase. Capacitor start on single-phase. Removable without affecting limit switch settings.
- Operators are factory preset to C2 wiring, providing momentary contact to open and stop, with constant contact to close.
- First-stage heavy-duty 5L V-belt; second-third-fourth stages #48 chain; #50 output sprocket chain.
Two-year warranty.
Click here to visit LiftMaster’s website or give us a call at (225) 753-1595 to discuss your individual needs and get a customized quote.
